Brakes


Brake Specifications:

Front

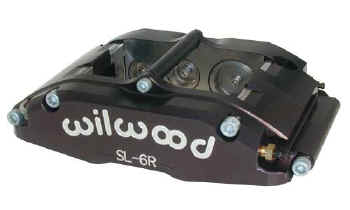

  • Wilwood SL6 (6 piston) front calipers w/ Thermlock pistons

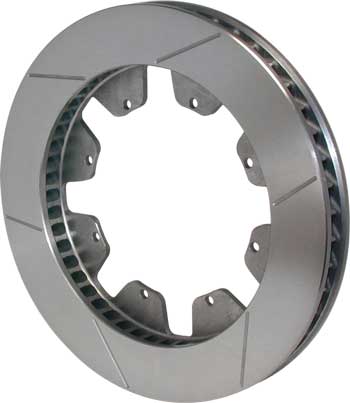

  • Wilwood GT-48 directional vane rotors, 310 mm (12.19") x 32 mm (1.25")

  • Custom designed billet aluminium caliper brackets and billet aluminium rotor hats

  • Wilwood PolyMatrix "Q" pads

  • 5mm spacers on front wheels

  • Braided stainless steel lines

Rear (upgrade currently underway for spring 2007 installation)

  • Wilwood SL4 (4 piston) calipers

  • Wilwood 310 mm ( 12.19") x 32 mm ( 1.25") curve vane rotors

  • Custom designed billet aluminium caliper brackets and steel rotor hats

  • Wilwood PolyMatrix "Q" pads

  • Wilwood proportioning valve

  • Braided stainless steel lines
